Electrical Boilers

Elmo – Electrical boiler

Our electrical boilers are silent, quick to start and can be used without constant supervision.
Elmo is energy-saving and is a good choice for producing steam in every kind of industry.

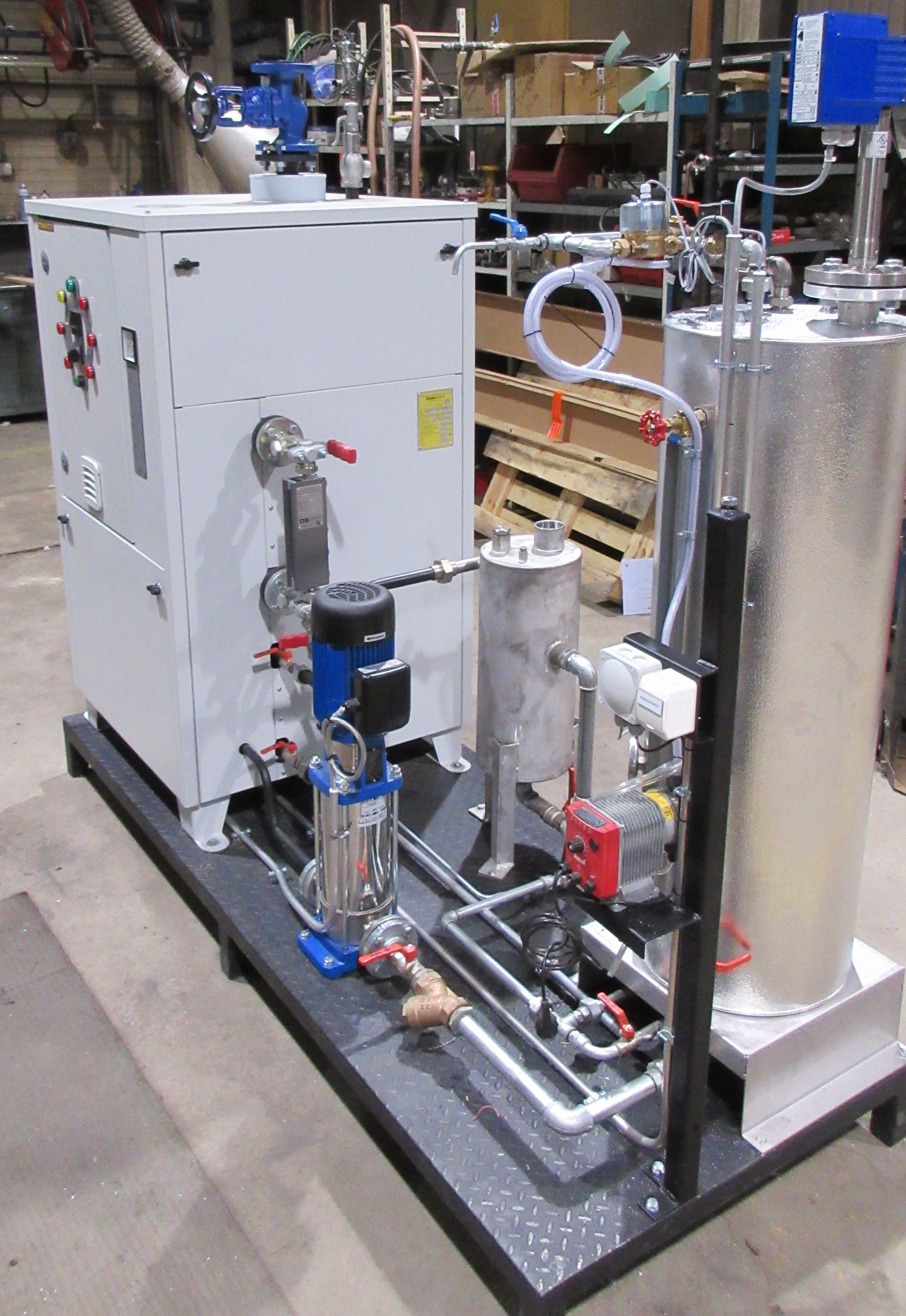

The steam boiler including electric heating elements is installed inside a compact body. Water is fed to the boiler
either directly from the water distribution system or with a feed water pump from feed water tank.
Water is heated on the resistances evaporates. The pressure needed at the purpose of use controls automatically the operation of the boiler.
Thanks to its simple structure the boiler is easy to service and operate.

Clean Steam

Elmo is also available in a “Clean-Steam” edition, made from corrosion resistant materials, ensuring you the best quality of clean steam. This model is especially intended for food industry, hospitals, laboratories, the pharmaceutical or biochemical industry. Places with a high demand to the steam quality



Technical Specifications

TypeElmo 30Elmo 45Elmo 60Elmo 75Elmo 150
Steam output45 kg/h65 kg/h90 kg/h115 kg/h230 kg/h
Power consuption30 kW45 kW60 kW75 kW150 kW
Fuses3 x 63A3 x 80A3 x 100A3 x 125A3 x 250A
Structural pressure 10 bar, operating pressure 0-9 bar (up to 16 bar available)
Electrical connection 400 VAC
Operating temperature 100-180°C
Design temperature 184°C
Width, depth, height 765 x 776 x 1340 mm
Weight 300 kg
Underlaying 2200 x 800 mm
Water level controlled by electrodes
Structural pressure10 bar, operating pressure 0-9 bar (up to 16 bar available)Electrical connection400 VACOperating temperature100-180°CDesign temperature184°CWidth, depth, height765 x 776 x 1340 mmWeight300 kgUnderlaying2200 x 800 mmWater levelcontrolled by electrodes
Structural pressure10 bar, operating pressure 0-9 bar (up to 16 bar available)
Electrical connection400 VAC
Operating temperature100-180°C
Design temperature184°C
Width, depth, height765 x 776 x 1340 mm
Weight300 kg
Underlaying2200 x 800 mm
Water levelcontrolled by electrodes
